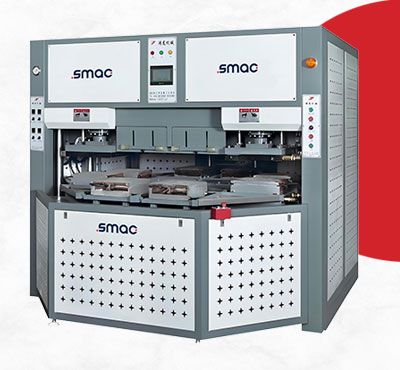

6 station/8 station EVA injection moulding machine for single color. Completely all servo motor. Larger plate size for larger mould. Digital display system for process & trouble shooting enables operator easy performance.
PLC control system
Two step study opening/closing mechanism
Hydraulic system for soft movement of upper moulds

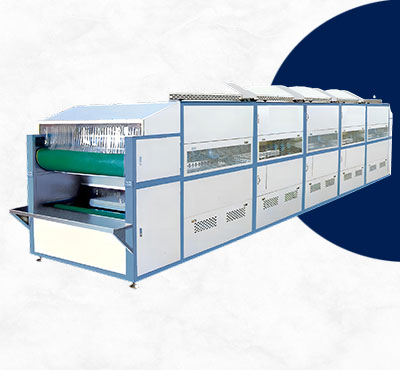

The machine is used for control the size of the EVA soles after injection production. With 5 section of heating chamber and each heating chamber with different temperature so that to control the size of the EVA soles. With double layer PVC belt, can largely improve production capacity.
With speed adjuster, easy to control the speed of the conveyor.
Voltage: 380 v
Power: 66 kw
Machine size: 860 x 150 x 205cm
Weight: 3100 kgs
Machine body designed with special structure, no fracture, no deformation, and increase in machine life. Higher production rate to 50%.
Pressure - 40 Tons
Working space - 700 x 520 mm
Motor - 7.5 HP
Machine size - 2400 x 2300 x 2200 mm

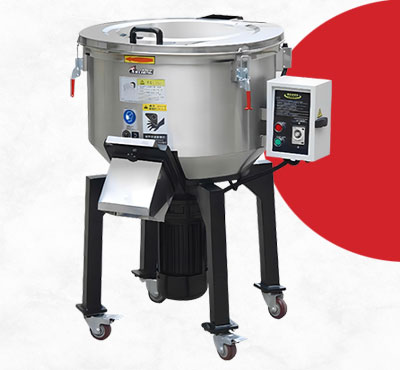

Stainless Steel SUS304, long Durable, no rust or eruption
High Quality Copper Motor
Voltage - 380 V
Capacity - 100 Kgs/time
Speed - 63 rpm/m
Machine Size - 105 x 115 x 139 cm

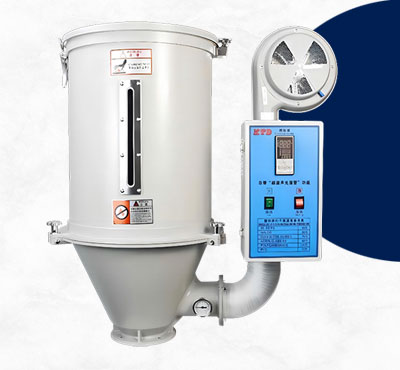

Removing the humidity from PVC, EVA, granules.
Adjustable Temperature
Voltage - 380 V
Capacity - 75 Kgs
Power - 5.5 Kw
Machine Size - 55 x 75 x 105 cm
To wash EVA injected sole by detergent water and pebbles. Enable degreasing
Adjustable speed
Voltage - 380 V
Smooth Soles
Power - 2 Kw
Machine Size - 230 x 150 x 210cm

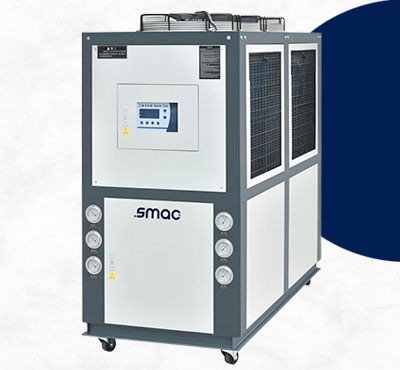

Compact wind chiller with/without cooling tower, air/water system.
Compressor Power - 11.25 Kw
Waterflow Rate: 8.6 m3/hr
Cooling Capacity: 41250 kcal/hr
Machine Size: 185 x 78 x 160 cm
This is EVA compounding line set of machine consisting mixer, elevator, mixing mill, EVA extruder, whirlwind barrel, vibrating conveyor and horizontal mixer. This is the process layout for eva compounding to produce EVA granule. This specification and sizes may differ upon the volume and quantity of production. Customized equipment can be provided for high quality and high productivity for EVA granule.
