This conventional oil heating thermic tank specially designed for heating system for mould of all injection and compression moulding machines.
This new technology designed with digital display to adjust temperature and timing required for mould heating. Sound proof, environmental-free, cost saving over steam and electric boilers
Special Design upon request - 60kw, 120kw, 180kw
Pump Pressure - 2.2 kg/cm2
Machine Power - 13kw
Machine Size - 1150 x 500 x 1000 mm

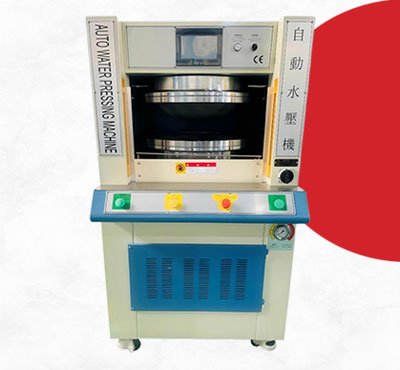

This machine are mainly used for stock fitting line to assemble UV treated EVA sole along with rubber outsole for effective bonding. This machine enables pressure under viscose oil fluid covered by round membrane in order to obtain equal pressure all around the sole for proper bonding.
The hydraulic press machine is not limited by any outsole shape and size of shoes, only 2-6 sec for each pairs of shoes.
Production Capacity - 2000 - 2800 pairs/8h
Machine Power - 3HP
Machine Size - 980 x 860 x 1550 mm
Weight - 1200Kg

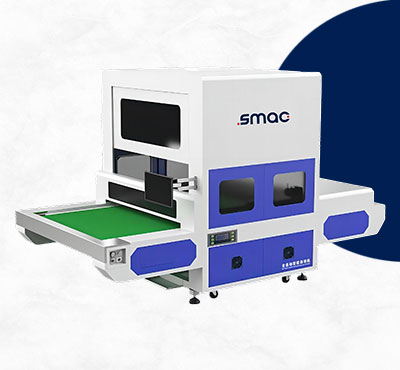

It is a double headed machine with three stage type which is an upgraded version of 1280S. The machine retains the three stage modular design of the 1280s model. The machine maximizes work efficiency, convenience and cost reduction while retaining the advantages of the original model.
Working area - 1600 x 800 mm
Max Size - 3500 x 2020 x 2300mm
Max cutting speed - 2500 mm/s
Marking line accuracy - +0.1
Weight - 1029 Kg
Rated Power - 3.3 Kw
Air pressure - 0.4 - 0.8 MAP
Rated Voltage - 220v +10%
Frequency - 50 - 60hz
